■ WPA: Effortless Synchronous Acquisition and Playback of Binaural Signals and Vehicle CAN Data

Simply install the WPA software on a tablet and connect the CAN cable. No extra power supplies, tripods or additional accessories are required. You can perform acquisition of binaural signals, dual-channel ICP microphone data and CAN data anytime and anywhere.

■ Streamlined Test Procedures

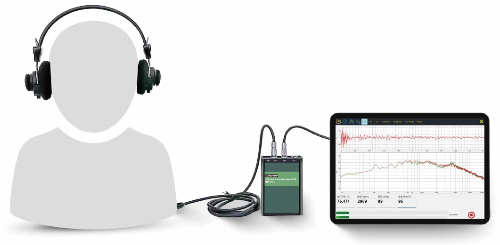

Install WPA on your mobile device, connect the WPA BOX, put on the headphones and plug in the CAN cable. Launch the software to start testing immediately.

The WPA BOX is powered via the USB-C port of the mobile device, enabling standalone operation of the entire system with no external power supply needed.

■ CAN Data Acquisition

It supports simultaneous collection of up to two channels of CAN/CAN FD bus data and binaural signals.

Users can load DBC files to configure target CAN channels for data monitoring and acquisition. Saved CAN data can be viewed and analyzed without DBC files afterwards.

The system also supports independent monitoring and acquisition of CAN data.

■ Real-time Signal Analysis

The software enables data monitoring and recording. No data will be stored during monitoring mode.

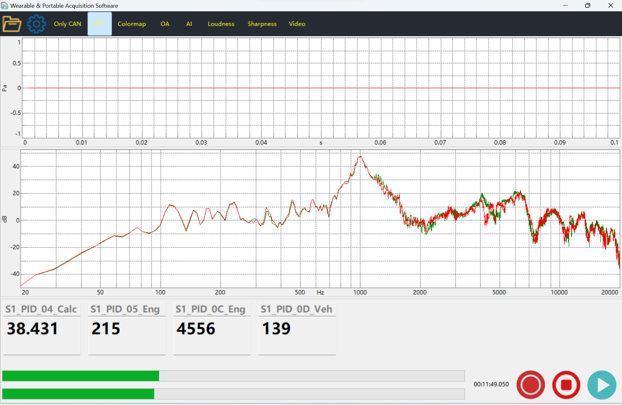

The following dynamic information is displayed in real time during monitoring or acquisition:

Time-domain waveforms, real-time FFT results, color spectrograms, overall sound pressure level, speech intelligibility, loudness, sharpness, CAN channel information and videos captured by the mobile device.

■ Data Storage and Playback

All data files are saved on the mobile device and managed via a dedicated list. The list features:

• High-fidelity playback via the built-in player;
• Real-time display of CAN information during recording and playback, together with synchronized time-domain data, real-time FFT results, color spectrograms, overall sound pressure level, speech intelligibility, loudness, sharpness and mobile device videos.
