The sound insulation structure of anechoic chamber doors consists of two layers: the outer fire-rated sound insulation door mounted on the outer wall with a fire resistance rating of no less than T30; and the inner sound-absorbing & sound-insulating door installed on the inner wall. The civil structure between the double doors adopts flexible connection and is equipped with a sound lock to further boost sound absorption and insulation. The single door achieves a sound insulation capacity of 55 dB, while the overall sound insulation of the double-door assembly is no less than 65 dB (equivalent to the sound insulation performance of double partition walls).

Each door is fitted with an independent handle and door stopper. The outer door is equipped with a door closer, door retainer and lock for easy opening and closing. All doors feature a barrier-free threshold design to facilitate vehicle access while maintaining outstanding sound insulation performance, which has been fully verified through application in numerous similar projects.

Landtop Technology SPD sound insulation door series covers SPD double-leaf sound insulation doors, SPD single-leaf sound insulation doors and SPD single-leaf fireproof sound insulation doors. Compatible with patented internal sound absorption structures including BCA and ASA, these doors adopt a 180° inward opening layout to create a smooth, tidy interior aesthetic inside anechoic chambers.

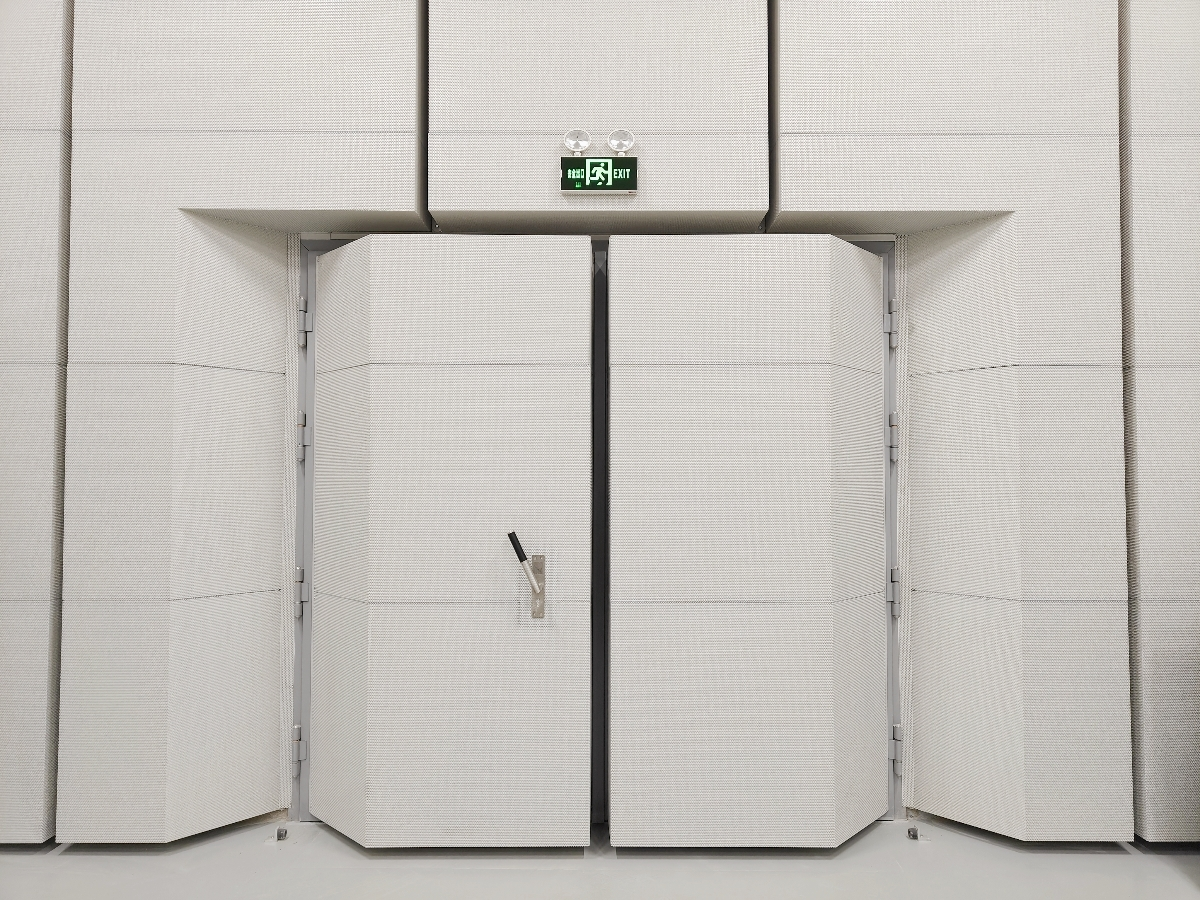

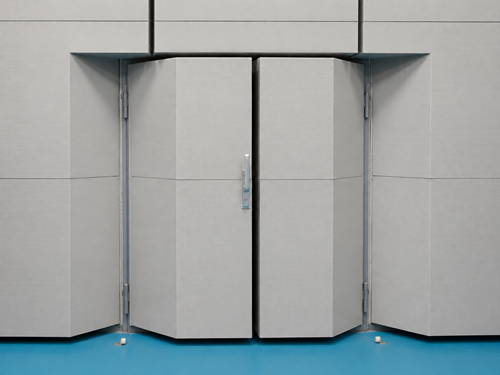

SPD Double-Leaf Sound Insulation Door

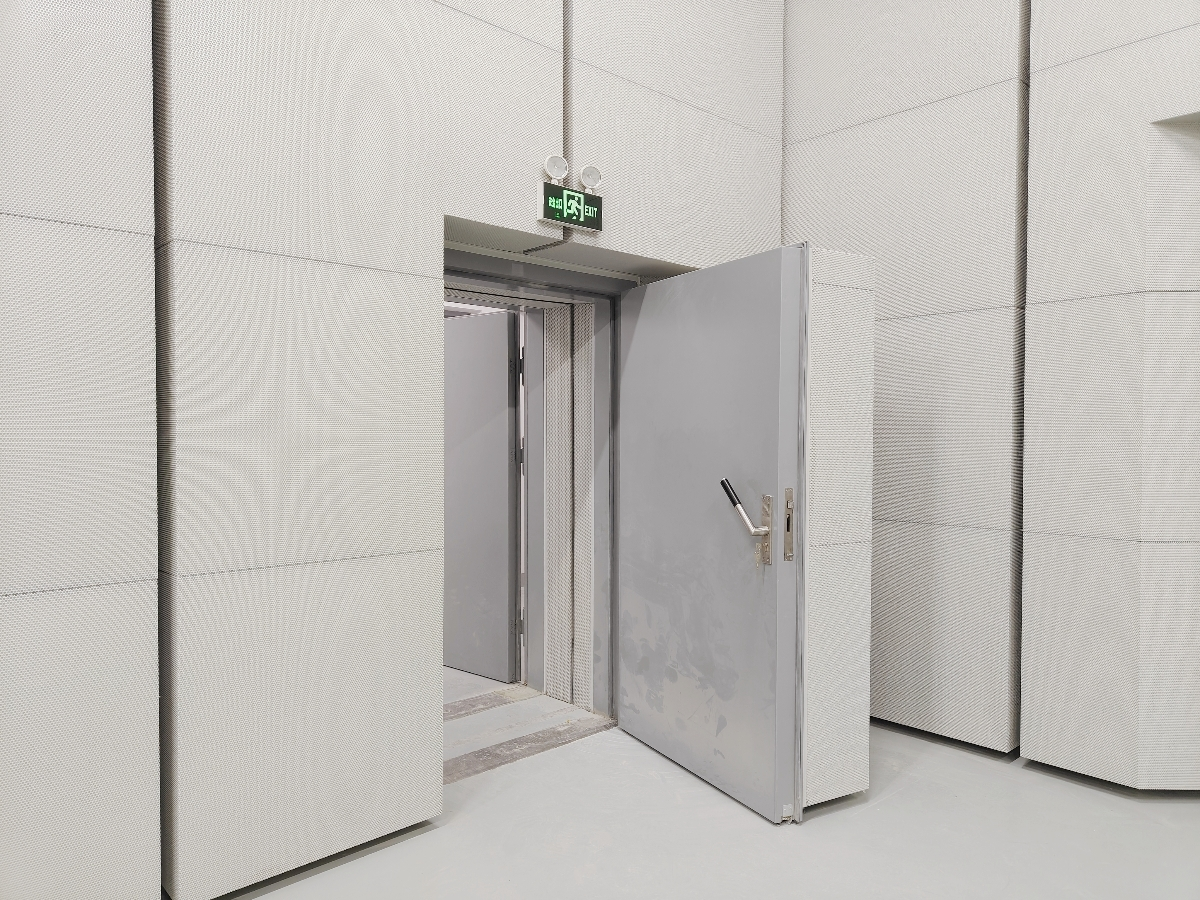

SPD Single-Leaf Sound Insulation Door

Landtop Technology SPD series sound insulation doors are high-performance door products with independent intellectual property rights, suitable for acoustic test chambers, sound insulation booths, studios and recording rooms requiring high sound reduction performance. The SPD series includes single-leaf and double-leaf sound insulation doors with F60 fire resistance rating.

Light operation and long-term durability are fully prioritized in the design of Landtop SPD sound insulation doors. Specially engineered sealing and hinge structures deliver optimal sound insulation and airtightness, while premium locks ensure effortless and comfortable opening and closing.

Door panels are finished with dry powder coating and available in standard colors; custom color matching can be provided to meet clients’ personalized decoration requirements upon request.

■ Various Acoustic Laboratories
